Buffer Formulation Design for IVD Reagents: From Component Mechanisms to Clinical Application — Part Ⅱ: Component Incompatibility & Systematic Optimization Strategies

The previous article elaborated on the definition, core functions, main components and corresponding roles of buffers. This paper provides a detailed discussion from two perspectives: incompatibility between components and formulation optimization strategies.

3. Incompatibility and Interactions Among Components

Ingredients within IVD reagent buffers do not function independently; instead, intricate chemical and physical interactions take place between them. A clear grasp of these incompatibility rules is essential for buffer formulation optimization.

3.1 pH-Dependent Incompatibility

The temperature susceptibility of Tris buffer serves as a typical example of pH-related incompatibility. The pKₐ value of Tris varies markedly with temperature. A Tris buffer prepared at 4 ℃ will undergo obvious pH drift when applied at 37 ℃, which suppresses enzymatic activity and reduces the binding efficiency of antigen and antibody.

Available solutions are as follows:

1. Perform pH calibration at the final reaction temperature;

2. Replace Tris with buffering agents featuring low pH temperature coefficients such as HEPES.

The pH dependence of enzyme activity is another critical concern. For instance, horseradish peroxidase (HRP) reaches its peak activity around pH 7, so PBS at pH 7.4 is commonly adopted as the buffer for HRP-based reagents. By contrast, alkaline phosphatase (AP) exhibits maximum activity at pH 9.5, requiring alkaline buffers including carbonate buffer and Bicine.

Adjusting pH near the isoelectric point of antigens and antibodies can cut down non-specific adsorption, yet it may compromise enzymatic activity.

The pH dependence of inhibitors also cannot be ignored. For example, the chelating capacity of EDTA declines under acidic conditions, which may trigger more metal ion-dependent non-specific side reactions.

3.2 Incompatibility Caused by Ionic Interactions

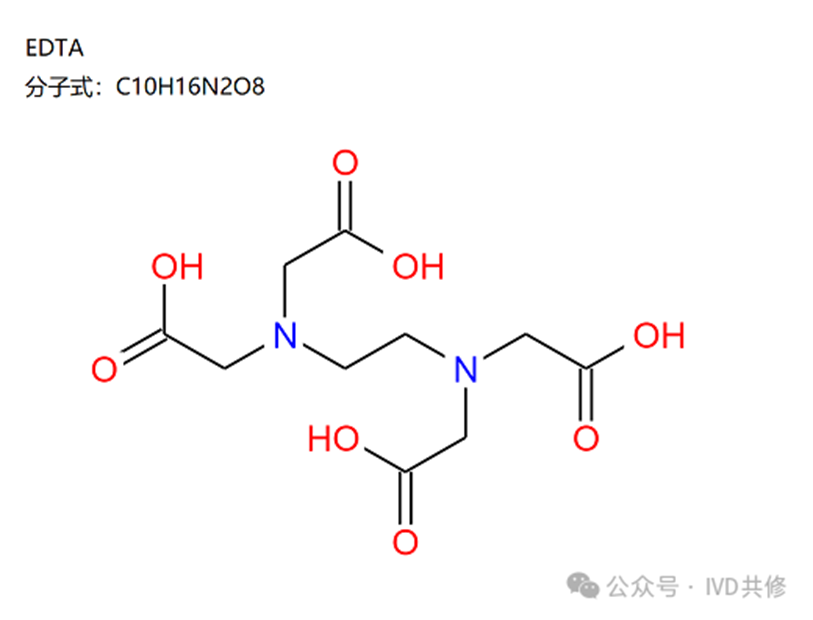

Competitive binding between EDTA and divalent metal ions is the most prevalent ionic interaction issue. EDTA strongly sequesters essential cofactors including Mg²⁺ and Ca²⁺, leading to reduced activity of DNA polymerase and alkaline phosphatase.

Corresponding solutions:

1. Precisely control the dosage of EDTA;

2. Avoid adding EDTA in systems containing DNA polymerase;

3. Adopt alternatives with weaker chelating power such as citric acid.

Precision is maintained with consistent professional terminology aligned with the previous chapter, formatted for academic paper submission.

Another noteworthy issue is precipitation formed between phosphate and metal ions. Phosphate ions can precipitate with Ca²⁺, Mg²⁺ and other metal ions, impairing the stability and functionality of the buffer. Therefore, phosphate buffers shall be avoided in systems requiring high concentrations of divalent metal ions; alternatives such as Tris-HCl or HEPES buffer systems are recommended instead.

The influence of excessive ionic strength on protein solubility also merits consideration. Overly high ionic strength may trigger protein precipitation, while insufficient ionic strength fails to effectively shield electrostatic charges and elevates non-specific adsorption. Optimization of ionic strength requires a balance between these two adverse effects.

3.3 Interactions Between Surfactants and Biomolecules

Inhibition of antigen-antibody binding by surfactants is a critical concern. Excessively high surfactant concentrations may alter the conformation of antigens or antibodies and disrupt specific binding. Corresponding solutions are listed as follows:

1. Precisely control surfactant concentration (typically 0.05%–0.1% for Tween-20);

2. Adopt mild nonionic surfactants;

3. Optimize the combination of surfactant type and dosage.

Interactions between surfactants and enzymatic activity must also be taken into account. Certain surfactants exert inhibitory effects on enzymes. For instance, SDS denatures and inactivates most enzymes. Strong ionic surfactants should be excluded from enzymatic reaction systems, or removable surfactants may be adopted as substitutes.

3.4 Interactions Between Stabilizers and Other Components

The Maillard reaction induced by carbohydrate stabilizers requires vigilance. Reducing sugars such as sucrose undergo the Maillard reaction with proteins under high temperature, causing reagent discoloration and deteriorated performance. Countermeasures include:

1. Employ non-reducing sugars including trehalose and mannitol;

2. Control storage temperature and shelf life;

3. Construct composite sugar systems (e.g., trehalose combined with sucrose) for synergistic stabilization.

Note: Essentially, the Maillard reaction refers to the addition and condensation reaction between amino groups and carbonyl groups. It occurs between carbonyl compounds (derived from aldehydes, ketones, reducing sugars and lipid oxidation) and amino-containing substances including amines, amino acids, peptides, proteins and even ammonia. Thermal treatment and prolonged storage both facilitate the Maillard reaction, which endows food with characteristic flavor and color.

Batch variation and cross-reactivity of BSA require attention. BSA from different sources or production batches may display compositional discrepancies, undermining inter-batch consistency of finished reagents. Additionally, BSA may cross-react with certain antibodies and generate false-positive signals. Recommended solutions:

1. Utilize pre-qualified BSA batches;

2. Perform cross-reactivity verification tests;

3. Replace BSA with synthetic polymers or recombinant proteins when applicable.

pH dependence and oxidative deactivation are two prominent drawbacks of DTT. The reducing capacity of DTT declines under acidic conditions, and DTT is prone to oxidation and loss of activity over time. Solutions:

1. Prepare and apply DTT under appropriate pH conditions;

2. Prepare DTT solutions freshly before use;

3. Adopt stable alternatives such as TCEP (tris(2-carboxyethyl)phosphine).

3.5 Interactions Between Preservatives and Other Ingredients

Preservative-induced inhibition of enzymatic activity is a key issue. Certain preservatives suppress enzyme activity; sodium azide is a typical example. Mitigation strategies:

1. Select preservatives with minimal interference to target enzymes;

2. Reduce the working concentration of single preservatives;

3. Build composite preservative systems to lower the dosage of individual antimicrobial agents.

Compatibility between preservatives and surfactants also needs evaluation. Some preservatives may chemically interact with surfactants, weakening bacteriostatic efficacy or impairing surfactant function. Practical approaches:

1. Screen mutually compatible preservative-surfactant pairs;

2. Conduct compatibility validation experiments;

3. Adjust formulation proportions accordingly.

4 Optimization Strategies for Buffer Formulation Design

With an in-depth understanding of component functions and incompatibility risks, IVD researchers can optimize buffer formulations from the following dimensions to improve reagent performance and long-term stability.

4.1 Buffer Selection Based on Application Scenarios

Buffer selection shall be determined by specific application demands, including pH range, temperature susceptibility, ionic strength and component compatibility.

For immunodiagnostic reagents, buffer selection is governed by these factors:

1. Optimal pH for antigen-antibody binding (generally pH 7.0–7.5);

2. Optimal pH of labeled enzymes: HRP exhibits maximum activity near pH 7.0, while ALP peaks at pH 9.5;

3. Coating efficiency: elevated pH (e.g., pH 9.6) facilitates protein immobilization;

4. Non-specific adsorption: pH near the isoelectric point of biomolecules helps reduce background binding.

In practical application, PBS (pH 7.4) is widely used for HRP-labeled immunoassays; carbonate buffer (pH 9.6) or Bicine (pH 8.0–9.0) is adopted for ALP-based detection; carbonate buffer at pH 9.6 serves as coating buffer, and PBS or TBS (pH 7.4) is commonly used as washing buffer [10].

For molecular diagnostic reagents, buffer selection focuses on:

1. Optimal pH of DNA polymerases (usually pH 8.0–8.5);

2. Magnesium ion stability;

3. Primer annealing efficiency;

4. Amplification specificity of target fragments.

Typically, PCR systems employ Tris-HCl (pH 8.3–8.8) or HEPES (pH 7.5–8.0) supplemented with salts such as ammonium sulfate and potassium chloride. For multiplex PCR or templates with high GC content, additives including betaine, DMSO and tetramethylammonium chloride can be incorporated to boost amplification efficiency [11].

For biochemical diagnostic reagents, buffer design takes into consideration:

1. Optimal pH of target enzymes;

2. Substrate stability;

3. Detection methodology of reaction products;

4. Interference from exogenous contaminants.

Different biochemical test items require tailored buffer systems: phosphate or Tris buffers for liver function assays, borate buffers for renal function detection, and HEPES or MOPS buffers for cardiac biomarker testing.

4.2 Multi-Component Synergistic Optimization

Buffer performance relies not only on individual component properties but more importantly on synergistic effects among multiple ingredients. Rational multi-component collocation can achieve superadditive benefits beyond individual effects.

Composite buffer systems broaden buffering range and elevate buffering capacity. For instance, a mixture of HEPES (pKₐ = 7.45) and Tris (pKₐ = 8.1) delivers stronger buffering power across pH 7.0–9.0. Combined phosphate (pKₐ = 7.2) and Tris systems provide a more stable pH environment within pH 6.8–8.0 [12].

Composite sugar stabilizers break the performance limitations of single carbohydrate additives via intermolecular synergy. Studies demonstrate that trehalose forms a rigid protective shell while sucrose fills molecular gaps in trehalose-sucrose blends, markedly enhancing thermal stability. A trehalose-glycerol combination improves hydrophilicity and alleviates trehalose crystallization under low temperature, making it suitable for regions with unstable cold-chain transportation. Co-use of saccharides and protein stabilizers (e.g., trehalose plus BSA) masks hydrophobic surfaces and maintains osmotic pressure simultaneously, effectively cutting non-specific binding.

Compound surfactant systems address multiple technical challenges concurrently. A blend of nonionic Tween-20 and ionic SDS preserves protein solubility while inducing moderate protein denaturation to improve detection sensitivity. The optimal mixing ratio and concentration must be confirmed through trials to avoid suppression of antigen-antibody recognition or enzymatic activity.

4.3 Optimization via Design of Experiments (DoE)

Statistical experimental design drastically accelerates formulation optimization, reduces trial numbers and rapidly identifies the optimal formula.

Single-factor experiment is the most basic optimization method. It alters one variable at a time (e.g., buffer type, concentration) and monitors pH variation or assay readout to screen the best single-factor condition. Its strengths lie in simplicity and intuition, whereas it cannot quantify interaction effects between factors.

Orthogonal array design is a multi-factor, multi-level experimental strategy that comprehensively evaluates factor impacts on buffer performance and screens the optimal formulation. For a buffer system involving buffer type, concentration, pH, ionic strength and surfactant dosage, orthogonal tables such as L9(3⁴) or L27(3¹³) can drastically reduce experimental workload. Orthogonal testing not only determines the optimal combination but also ranks the significance of each factor via analysis of variance (ANOVA).

Response Surface Methodology (RSM) is a statistics-driven optimization technique. It establishes regression equations to model the relationship between input factors and response values, and locates optimal conditions by analyzing response surfaces and contour plots. RSM is especially fit for continuous variable optimization with multiple factors and levels, enabling precise pinpointing of formulation parameters. For example, a quadratic regression model can be built between buffer concentration, pH, ionic strength and detection sensitivity to calculate the optimal formula mathematically.

Uniform design is applicable to experiments with numerous factors and levels (typically 5–10 levels per factor). It distributes experimental points evenly across the design space to acquire comprehensive data with minimal tests, which is ideal for preliminary formulation screening.

4.4 Stability Enhancement Strategies

Long-term stability is a core determinant of successful IVD product commercialization, which must be fully addressed during buffer development.

Thermal Stability Optimization

1. Replace temperature-sensitive Tris with thermostable buffers including HEPES and Bicine;

2. Add thermal protectants such as trehalose and glycerol;

3. Adjust pH to the range with the best thermal tolerance;

4. Control impurity levels to prevent impurity-induced biomolecule degradation.

Freeze-Thaw Stability Optimization

1. Incorporate cryoprotectants (trehalose, sucrose, glycerol);

2. Moderate ionic strength to avoid protein precipitation under high salt conditions;

3. Use dedicated cryopreservation solutions to mitigate protein damage from ice crystal formation;

4. Standardize freeze-thaw protocols including cooling rate and storage temperature.

Photostability Optimization

1. Avoid photooxidation-prone components such as HEPES where possible; select photostable buffering agents;

2. Supplement antioxidants including vitamin C and glutathione;

3. Adopt light-proof storage with amber bottles or aluminum foil packaging;

4. Add photostabilizers such as parabens.

Microbial Stability Optimization

1. Incorporate preservatives including ProClin 300 and thimerosal;

2. Tune pH to inhibit microbial proliferation;

3. Elevate ionic strength moderately to suppress microorganism growth;

4. Perform sterile filtration and hermetic sealing.

4.5 Manufacturing Process Optimization

Laboratory-scale formulation optimization is only the initial step; scalability and manufacturability for mass production must be taken into consideration.

Raw Material Purity Control

Buffers and salts shall be of analytical grade or molecular biology grade, free of nuclease, protease and heavy metal contamination. Stabilizers are preferred to be pharmaceutical or food grade to avoid endotoxin and other impurities.

Optimized Reagent Addition Sequence

A standard preparation order is specified to prevent adverse component reactions:

1. Dissolve the buffering agent;

2. Calibrate pH value;

3. Add salt components;

4. Introduce stabilizers;

5. Supplement surfactants;

6. Add preservatives last.

Sufficient stirring and homogenization are required after each addition to prevent local supersaturation, precipitation or side reactions.

pH Calibration at Target Working Temperature

Temperature-sensitive buffers like Tris must be pH-adjusted at the final reaction temperature; otherwise temperature fluctuations will cause pH drift and compromise reagent performance.

Sterile Filtration

Sterilize the finished buffer via 0.22 μm membrane filtration. Verify membrane integrity before filtration and conduct sterility testing post-filtration.

Aliquoting and Packaging Optimization

Select packaging specifications matching routine usage volume to avoid repeated opening leading to contamination or performance decay. Packaging materials shall be chemically compatible with the buffer to prevent adsorption or leakage.

5 Conclusion and Outlook

Buffer formulation design for IVD reagents is a sophisticated systematic engineering discipline integrating multidisciplinary theories. This paper systematically elaborates on buffer definition, core functions, component mechanisms, incompatibility principles and multi-dimensional optimization strategies, providing comprehensive theoretical guidance and practical references for IVD R&D practitioners.

5.1 Core Takeaways

1. Four fundamental buffer functions: pH stabilization, ionic strength regulation, reduction of non-specific adsorption, and protection of biomolecular activity, realized via synergistic effects of multiple additives.

2. Main constituents cover buffering agents (Tris, HEPES, PBS, carbonate, Bicine, etc.), salts, surfactants, chelating agents, preservatives and stabilizers, each undertaking a defined role within the system.

3. Primary incompatibility categories: pH-dependent conflicts (e.g., temperature drift of Tris), ionic competitive interactions (e.g., EDTA chelation of Mg²⁺), surfactant-biomolecule interference, stabilizer-related side reactions (e.g., Maillard reaction of sugars), and preservative incompatibility with other ingredients.

4. Optimization framework includes scenario-based buffer selection, multi-component synergistic matching, statistical experimental design (orthogonal test, RSM, etc.), stability improvement and production process standardization.

5.2 Recommendations for IVD R&D Staff

1. Rational formulation design is built on thorough comprehension of component mechanisms. Avoid blind additive dosing and clarify the mode of action and influencing factors of every raw material.

2. Preemptive evaluation of component incompatibility is essential to prevent formulation failure and guarantee batch-to-batch consistency.

3. Adopt standardized statistical design of experiments to shorten development cycles and improve optimization efficiency.

4. Balance laboratory performance with industrial manufacturability and cost control to facilitate smooth product transformation and mass production.

5. Sustain technical learning and iterative innovation alongside evolving IVD technologies to maintain competitive advantages in formulation development.

References

[10] Key Strategies and Technical Analysis for IVD Reagent R&D[EB/OL]. (2024-03-05)[2026-01-21]. https://www.iesdouyin.com/share/video/7342809367235841290.

[11] Vazyme Biotech Co., Ltd. Principles and Applications of PCR Technology[EB/OL]. (2026-01-06)[2026-01-21]. https://bio.vazyme.com/news_1/30.html.

[12] In-depth Research on Screening Methods of Buffer Formulations[EB/OL]. (2025-01-26)[2026-01-21]. https://www.docin.com/touch_new/preview_new.do?id=4812324332.
